Javelin
Javelin is a keyboard firmware that features a steno engine. This allows Javelin compatible devices to translate directly from the keys pressed to textual output. This bypasses the need to install Plover (or anything) on the host machine. All the translations are contained within the keyboard itself ("plug and play stenography"). It is compatible with several commercially available hobbyist writers.
Updating your writer to use Javelin
To use Javelin on your hobbyist steno writer, you will need to update the firmware. The general process involves downloading a Javelin firmware file, and copying it to your device.
The following video goes through this process at 1:06:
You will need a computer running a desktop OS (e.g. Linux, macOS, Windows) to update your steno writer's firmware. This will not work on an Android or iOS device.
1. Select your steno writer
Firmware files can be downloaded from the Javelin firmware builder. Before proceeding, make sure the correct device is selected.
2. Download a firmware file
2a. New users
For new users, download either the Default Plover or Default Lapwing files depending on which theory you want to use.
Default Plover or Default Lapwing.2b. Advanced users
If you wish to customize your Javelin configuration, select the options you want, and download either incremental or standalone depending on your needs.
3. Copying the file to your device
The instructions to update your device differ depending on the board you are using; make sure you have selected the right board as outlined in step 1. You can find instructions to update your file's firmware at the bottom of the page. In general, most boards require you to hold down a button while plugging it in, and copying the firmware file you downloaded (in step 2) to the new drive.
Device compatibility
Javelin works on any modern device that accepts USB keyboard input. This includes smartphones, Chromebooks, tablets, etc.
Apple iPhones
Javelin works out of the box with USB-C iPhones. For iPhones with a lightning connector, a camera kit is required.
Features
This section covers some noteworthy features of Javelin. If you wish to view all of the available settings and features, have a look through the Javelin firmware builder. You may have to select Show expert options to find the option you are looking for.
Embedded steno engine
Compatible host devices
Javelin can translate steno strokes to text in exactly the same way that Plover does. However, as Javelin's steno engine is embedded in the keyboard firmware itself, no extra software is required on the host device. Javelin simply sends the translations as if they were coming from a regular keyboard. Therefore, Javelin is compatible with any device that accepts regular USB keyboard input.
Dictionary management
Adding your own arbitrary JSON dictionaries is fully supported. Using the web tools or custom defined outlines, it is possible to temporarily disable dictionaries.
Compared to Plover, however, it is not possible to add your own programmatic dictionaries (such as python dictionaries) using the firmware builder. Some popular python dictionaries have been implemented in Javelin, such as Emily's symbols and Jeff's phrasing. However, there is no officially documented way to write a programmatic dictionary for Javelin (though it is technically possible).
Non-WSI layouts
It is not currently possible to use a non-WSI layout with Javelin (this may change in the future).
Unicode characters
Javelin supports several methods to write Unicode characters, which are all dependent on the host device. Using the settings in the web tools, the Unicode mode can be set to allow writing such characters on Linux, macOS, and Windows. Using the firmware builder, the default Unicode mode can be specified.
Key map customization
Like with Plover, the key map can be set in Javelin to allow for tweaks such as top `S` number key, or changing the placement of the thumber keys on various boards.
Adding translations
Using the web tools or a defined outline, it is possible to add translations to a user dictionary just like in Plover.
First-up and chord repeat
Using the firmware builder, it is trivial to add first-up chord send or chord repeat functionality to your board.
Layout editor
Javelin has a GUI for editing the layout of your keyboard. It is a very powerful tool, allowing you to customize any aspect of the layout.
Web tools
Javelin provides a set of web tools for learning aids, and tweaking settings.
Cannot connect to device on Linux

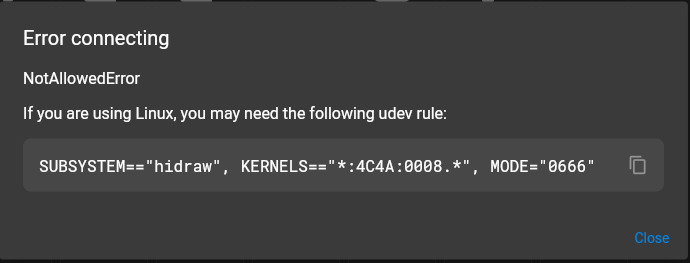

If you see Error connecting while trying to connect to your device with the web tools, you need to add a udev rule. Create a file at /etc/udev/rules.d/99-keyboard-javelin.rules with the following content:
SUBSYSTEM=="hidraw", ATTRS{idVendor}=="9000", ATTRS{idProduct}=="400d", MODE="0666"After creating the file, reload the rule with the following commands:
sudo udevadm control --reload-rules sudo udevadm trigger
If this does not work, try replacing 9000 with feed.
Compatibility with existing steno protocols
Instead of outputting regular text, Javelin is also capable of outputting steno protocols such as Gemini PR or Plover HID. The Default Plover and Default Lapwing firmware files already have such layers configured. This is useful if you plan to still use Plover.
